- Forward
Fuselage
-

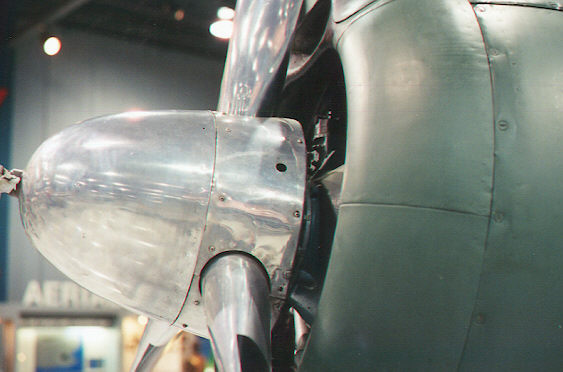

- 1.1 Propeller Spinner
- - Note
the white painted Hucks starter dog.
- - The
small hole in spinner base is for spraying de-icing fluid.
-
-

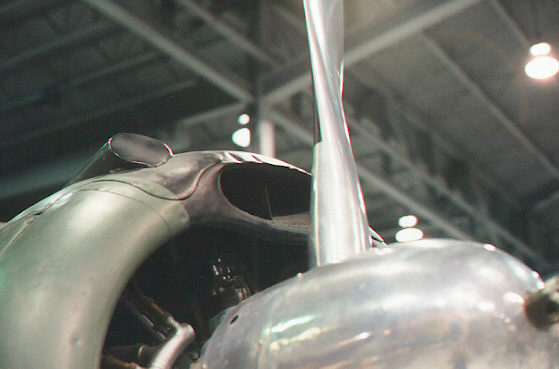

- 1.2 Carburetor Intake
- - Note
the small vertical strut in the center of the intake.
-
-

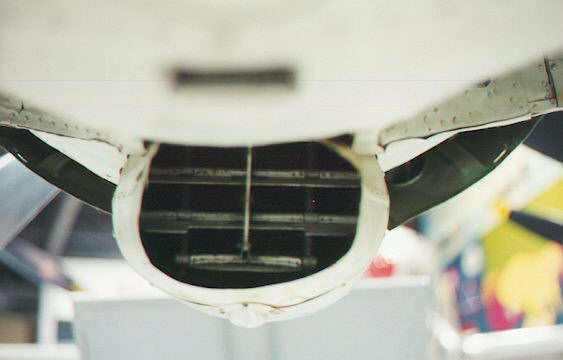

- 1.3 Oil Cooler
- - This
rear view shows the adjustable shutters at the back of the oil cooler.
-
-

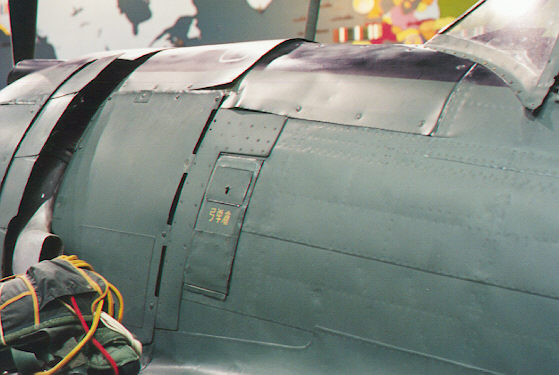

- 1.4 Forward Fuselage
- - The
lettering on the removable ammunition tray reads “bullet stored place”.
The small hatch above the lettering is opened by pushing down of the small
protruding stud to release the latch.
- - The
two top panels are replacement pieces.
- - The
parachute on the wing is a Navy ‘chute with the dates February 23, 1942
and January 16, 1944 stamped on it.
-
-

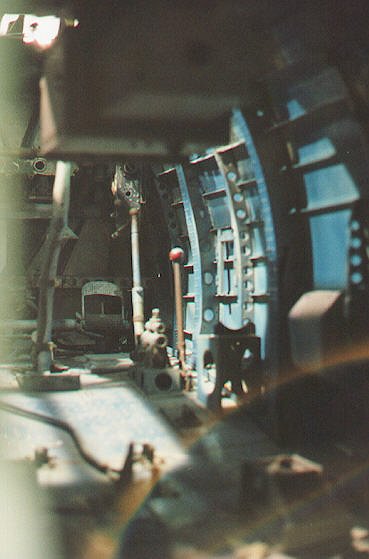

- 1.5 Cockpit Interior
- - The
photo was taken through the port side fuselage access panel shown in photo
2.1.
- - At
some time the interior has been sprayed with a blue aotake with an
approximate value of FS 25090 but note that the translucent quality of the
overspray causes variations in the intensity of the color. It is probable,
but not certain, that this was done during the restoration of the plane.
-
-

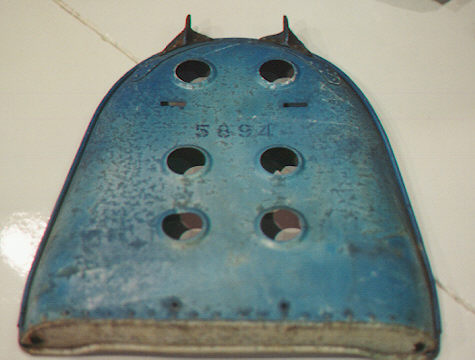

- 1.6 Seat Back
- - The
back of the seat shows the serial number 5894. Blue aotake has been sprayed
over both the painted serial number and traces of an underlying paint.
-
-
-
-

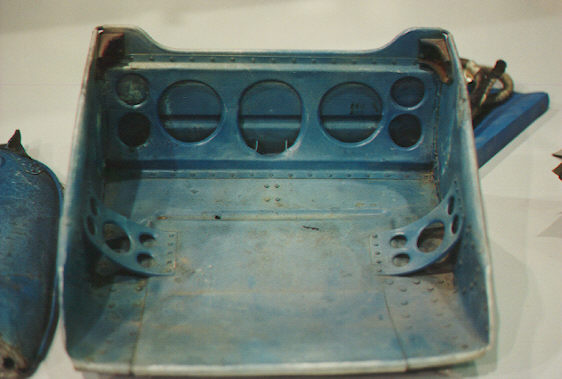

- 1.7 Seat Bottom
- - Again
traces of paint appear to have been oversprayed with the blue aotake.
-
