Landing Gear



4.1 Port Wheel Well

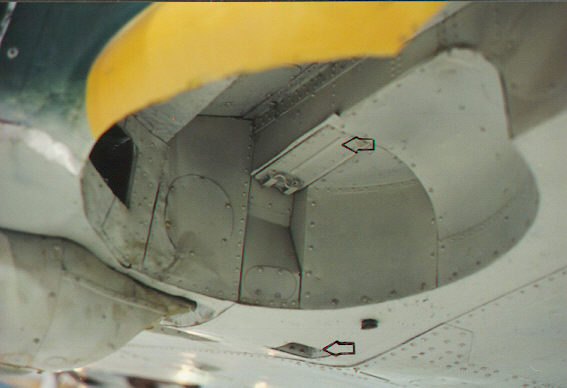

- The upper arrow points to the port machine gun spent ammunition compartment. The spent cartridge casings were recovered by opening this panel.

- The lower arrow references the discarded ammunition belt links chute.

- The opening in the inner front wall of the well was normally closed with a small cover.

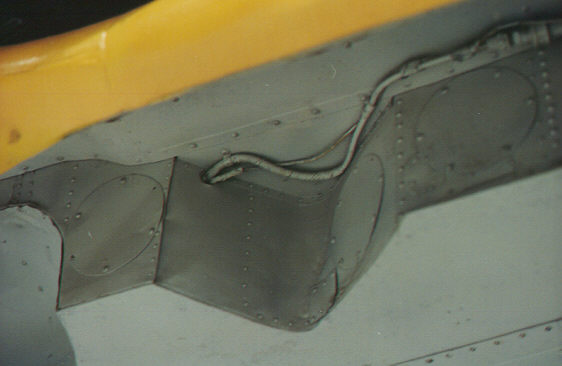

4.2 Port Wheel Well

      - The brake line appears at the top rear of the well.

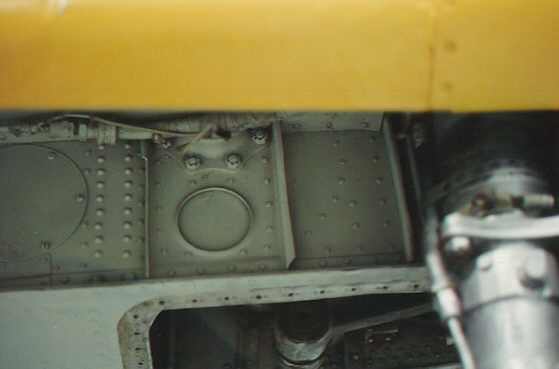

4.3 Port Wheel Well

      - The photo is of the rear wall of the wheel well.

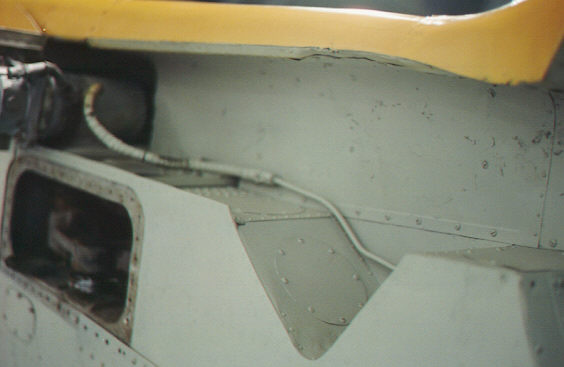

4.4 Starboard Wheel Well

      - This is the top of the center section of the wheel well.

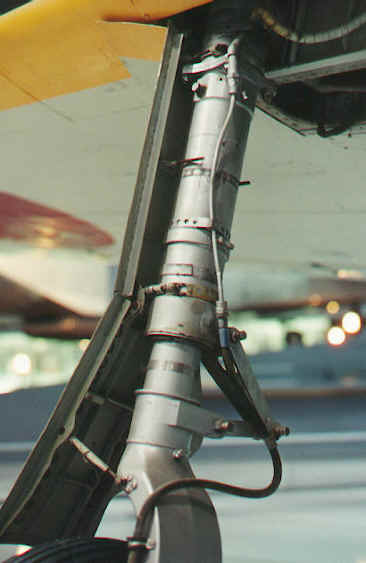

4.5 Starboard Landing Gear Strut and Strut Cover

- The strut has been painted with an aluminum paint except for the lower strut which was left unpainted.

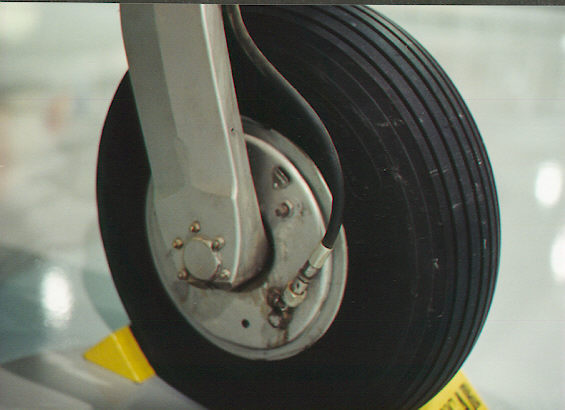

4.6 Port Wheel

- The lower landing gear strut was left unpainted.
