Nakajima Ki-44
- Purpose: Interceptor fighter with high
speed and climb rate to assist in the defense of the
Japanese mainland.
- Original Specifications:
- Climb to 13,125 ft in less than 5 minutes
- Reach a speed of 373 mph at that altitude
- Armament of two 7.7 mm and two 12.7 mm machin
guns
Revisions & Types: - Major Revisions
Ki-44 - Prototype (SN 4401-4403)
Nakajima Ha-41, this was a 1250 hp
engine, 14 cylinder, double-row radial
developed to be used on bomber aircraft.
Fuselage had a large side area
The fins and rudder were mounted well to
the rear of the horizontal tail surfaces
Wings had an area of only 161 square feet
Three section canopy, fron and rear fixed
adn the central one sliding to the rear.
Fixed tail wheel and cockpit mounted
radio antenna mast similar to the Ki-43
Single drop tank rack on the centerline
of the fuselage
Ki-44-I(a) Army Type 2 Single-seat
Fighter
- Rigidity of the engine mounting was
increased
- Shape and frontal area of the
supercharger's intake revised
- Cowl Flaps modified
- Firewall installation modified to improve
the engine cooling and dispensed with the
five cooling vents mounted on both sides
of the forward fuselage behind the
cowling gills
- Two section canopy with the front section
being fixed and the rear section sliding
- Radio antenna mast mounted on the forward
starboard fuselage side
- Redesigned rudder
- Two drop tanks
- Two - 7.7 mm Type 89 machine-guns, one -
12.7 mm Type 1 (Ho-103) machine-gun in
each wing outboard of the main
undercarriage well
- Telesopic gunsight protruded through the
windscreen
Ki-44-Ib
- Armament increased to four 12.7 mm Type 1
(Ho-103) machine-guns.
- Oil cooler was removed from inside the
cowling and placed under the cowl gills
Ki-44-Ic
- Lower hinged portions of the mainwheel
fairings from the legs to teh fuselage
Ki-44-IIa
- Nakajima Ha-109 Army Type 2 radial engine
Rated at 1,450hp
Ki-44-IIb
- Armament changed to two synchronized
7.7mm Type 89 machine-guns and two
wing-mounted 12.7 mm Type 1 (ho-103)
machine guns.
- This airframe and armament was identical
to the Ki-44-Ic
Ki-44-IIc
- Armament changed to four 20 mm Ho-3
cannons
- Some armed with two 12.7 mm Type 1
(Ho-103) and two wing-mounted 40 mm
Ho-301 cannons
- A small number of IIcs were fitted with a
pair of 37mm Ho-203 cannons
Ki-44-IIIa
- Nakajima Ha-145, 2,000 hp,
eighteen-cylinder air-cooled radial
featuring thrust augmentation exhaust
stacks
- Wing area increased to 204.5 square feet
- Tail surfaces enlarged
- Four 20mm Ho-5 cannon
Ki-44-IIIb
- Two 20 mm Ho-5 cannons and two 37 mm
Ho-203 cannon
Additional Ki-44 Notes from Peter
Starkings
Dave - I am preparing an article (for Jottings) on the Ki-44
and have taken a peek at your website info. on it. I entirely
agree with much of it, but (as is usual with most Japanese
aircraft!) there are a few anomalies, conflicts and additional
points as follows:
Ki-44-I: I see you have followed the a/b/c variant
identification given in some English publications such as by
Francillon. Japanese publications (FAOW and Maru Mechanic) do not
use these for the -I and Aircam/Schiffer suggest that the various
modifications to the -I took place progressively thru the short
production run. Retro-fitting some of these modifications would
seem to make it all the more difficult and confusing to relate
them to a clearly defined variant anyway!
For example:
- Your -1b: I cannot find photo evidence that any -I had
the under cowling oil cooler (see -IIa below). One -1
aircraft was fitted with a modified Ha.41 Pe Shi engine
and two bladed contra-prop and which did have a small oil
cooler under the cowling. Also, whilst a few late
production -Is were apparently fitted with 4X12.7mm guns,
(12.7mm F guns had slightly larger gas ports than 7.7mm)
it is a big step to tie this in with the alleged under
cowling oil cooler as variant -Ib, particularly in view
of:
- Your -Ic: The lower hinged u/c covers were moved to the
inner end of the u/c wells during the production run and
before the so called -1b mods. In any event, I think it
hardly likely that such a minor mod. would warrant the cidentification.
- Here are some more -1 items for you to ponder over:- The
butterfly combat flaps were added to the 12th a/c
assembled onwards.
- Some late production a/c had a small fuel cooler under
the fuselage,roughly in line with the aerial mast.
- A/c used for pilot training had the wing guns removed and
the muzzleports skinned over. (NB.This also applied to
some -IIswhen used for pilot training.)
- Some a/c had a half pear shaped spent cartridge collector
under the wing guns.
- Now on to the -IIs:-
- Your -IIa: Notwithstanding that a few late production -Is
were fitted with 4X12.7mm guns, Japanese sources state
that the standard-II Ko (a) a/c armament was 2X7.7mm (F)
+ 2X12.7mm (W). The first few -IIa still retained the
annular oil cooler, but this was soon replaced with the
under cowling scoop, thus spoiling the clean lower
fuselage line.
- Your -IIb: Now we have a problem because Japanese sources
state that the-IIOtsu (b) was fitted with 2x12.7mm guns
(F) and 2x40mm cannon (W) to tackle the B-29s.In fact,
this variant was not a success because the added weight
of the 40mm cannon reduced the a/c performance (making it
difficult to catch up with the B-29s), their rate of fire
was too slow and the range too short. Some reports
suggest that 37mm H cannons were tried instead, but I can
find no photo evidence to support this and, in any event,
that particular weapon would appear to be too big
physically to fit in the Ki-44 wing. In order to restore
performance the 40mm cannon were removed, but that lead
to lack of fire power and then to:
- Your -IIc: Another problem because Japanese sources state
that the -IIHei (c) was fitted with 4X12.7mm guns! I can
find no photo evidence that the -IIc was ever fitted with
4X20mm cannon, but see -IIIa following. Before moving
onto that, I would note that the IIc incorporated a
reflector sight instead of the telescopic one, although
the former were retro-fitted to -IIa and -b variants.
Some late production -IIc a/c were fitted with thrust
augmentation exhaust stacks. All -II aircraft could be
fitted with underwing bomb racks outboard of the u/c, a
short type for 30kg and a longer type for 60/100kg bombs.
Even so, it is difficult to find photos of a bomb laden
a/c!
- Your -IIIa and b: I agree about the -IIIa but am doubtful
about the -IIIb and 37mm cannon for the same reason as
already stated above. This is academic anyhow as none of
either was built!! One thing which might have caused
confusion over the -IIko/otsu/hei and -IIa/b/c armament
differences arises with the protruding W
gun/cannonbarrels. Some a/c had their 12.7mm W gun
muzzles covered with a phallic shaped removeable cover
looking more like a possible 20mm cannon. Then again, the
40mm cannon muzzles had a cover in two parts. With the
only the wing end part fitted the muzzle still protruded,
looking vaguely like a possible 37mm cannon. With the
outer end part fitted as well the muzzle was flush with
it, giving quite a different look to the whole thing.
- Now a word about the Hasegawa 1/48 kits which you
identify as Ki-44 Otsu. In fact, I have:
- #JT122 - Ki-44-I
- #JT37 - Ki-44-IIKo Kit states 2X7.7mm F + 2X12.7mm W
- #JT117 - Ki-44-IIOtsu do 2X12.7mm F + 2X40mm W
- #JT36 - Ki-44-IIHei do 4X12.7mm
- I think your JT134 is a re-issue with different markings,
but I don't know whether it is Ko, Otsu or Hei.
Units that flew the
Ki-44
9th, 22nd, 29th, 47th, 70th, 856th, 87th and
246th Sentais
47th Dokuritsu Dai Shijugo Chutai
Akeno and Hitachi Army Fighter Training Schools
Production
Qty |
Description |
3 |
Ki-44 Prototypes (1940-41) |
7 |
Ki-44 pre-production aircraft (1941) |
40 |
Ki-44-I production aircraft (Jan-Oct 1942 |
5 |
Ki-44-II prototypes (summer 1942) |
3 |
Ki-44-II pre-production aircraft (fall 1942) |
1167 |
Ki-440II and Ki-44-III production aircraft (Nov
1942-Dec 1944) |
1225 |
Total Ki-44s at Nakajima Hikoki K.K in their Ota
plant |

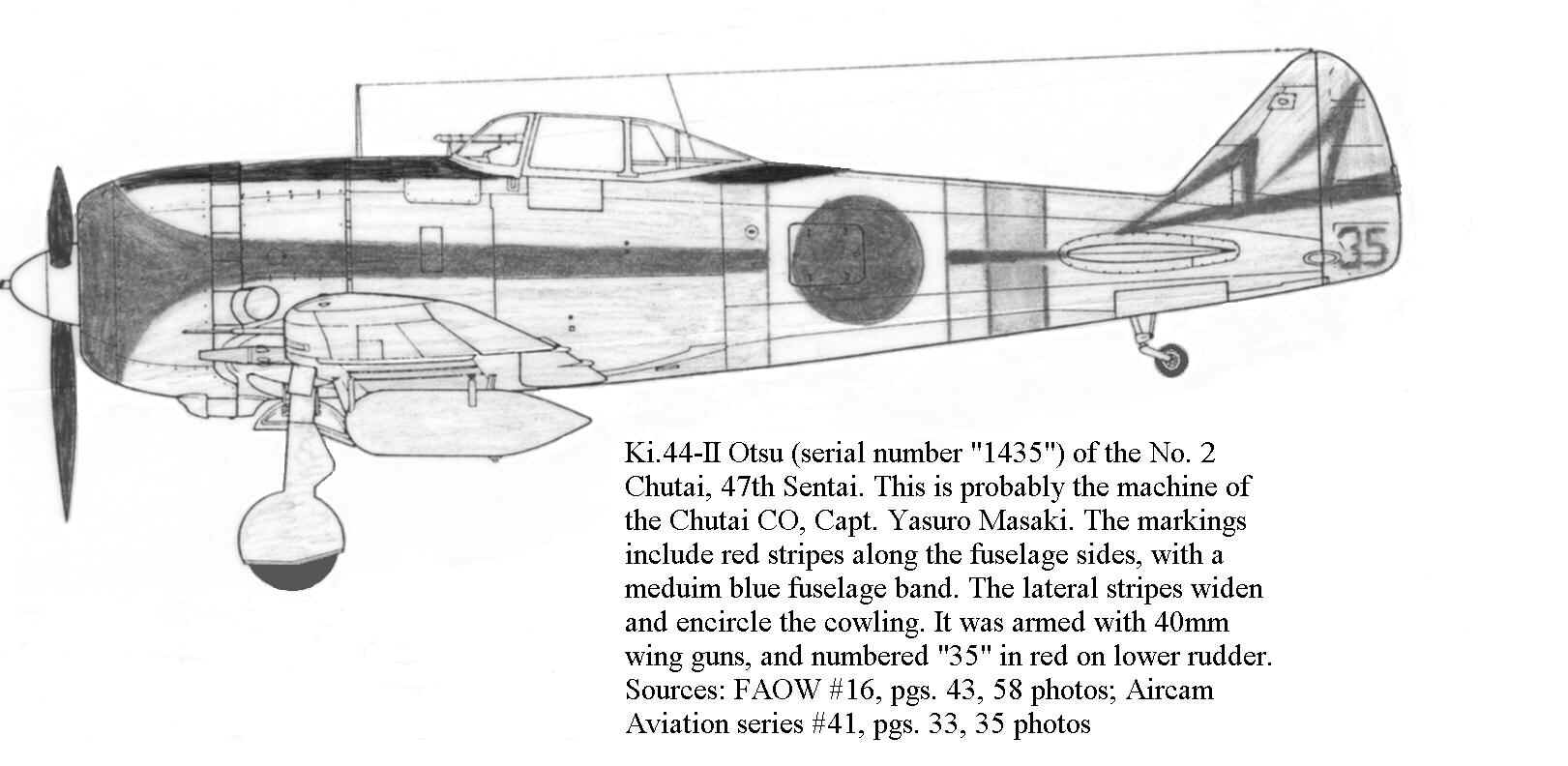

(Drawing by Jim Perry)
